BW-PS8D Series 64 channel high precision Pressure Scanning Valve

  • BW-PS8D Series 64 channel high precision Pressure Scanning Valve
Menşe yeri ÇİN
Marka adı BWSENSING
Model numarası BW-PS64D Serisi
Min sipariş miktarı 1
Teslim süresi 15 iş günü

Ücretsiz numune ve kuponlar için bana ulaşın.

Naber:0086 18588475571

sohbet: 0086 18588475571

Skype: sales10@aixton.com

Herhangi bir endişeniz varsa, 24 saat çevrimiçi yardım sağlıyoruz.

x
Ürün ayrıntıları
Mesaj bırakın
Ürün Açıklaması

INTRODUCTION:



BW-ps64d pressure scanning valve is a 64 channel scanning output device with a differential pressure pressure test range of 120kPa, which can measure the multi-point pressure values of UAV and wind tunnel environment. This product has 64 groups of test nozzles to output the pressure values in scanning mode, and the maximum speed can reach 200Hz. The device can directly output the pressure value in digital mode, eliminating the converter accessories required by traditional analog equipment, and its accuracy can stably reach 0.05% FS of total range.

Bw-ps64d adopts high-quality and reliable differential pressure type film pressure sensing chip, and ensures the measurement accuracy through algorithm. Through various compensations such as pressure correction system, nonlinear compensation, temperature compensation and drift compensation, the error caused by interference can be greatly eliminated and the product accuracy level can be improved. Bw-ps64d is a fully autonomous digital pressure scanning valve in small volume, which can be easily integrated into the user's system.





Pressure Index

 Range Differential pressure 120kPa
  Accuracy

0.05%FS

0.05%FS

0.1%FS


Zero Point Offset



 ＜ 0.05 %FS
  Temperature zero return difference(42h) 0.02uV/V
  Overvoltage performance 2MPa
Physical Characteristics Size L84.5*W42*H41.6(mm)
  Net Weight 250g
Interface Output Frequency 5~200Hz
  Baud rate of serial communication 2000000
  Digital output format ASCII & HEX
Pressure Chip Test Stability Load Static Voltage Characteristic ≤ 0.03 ±%FS/10MPa


Long-term Stability

(1000h,135℃)

 ±5uV/V


Nonlinearity



 ≤ 0.3±%FS
MTBF ≥3000 hs/time
Working Temperature

-20℃～+70℃

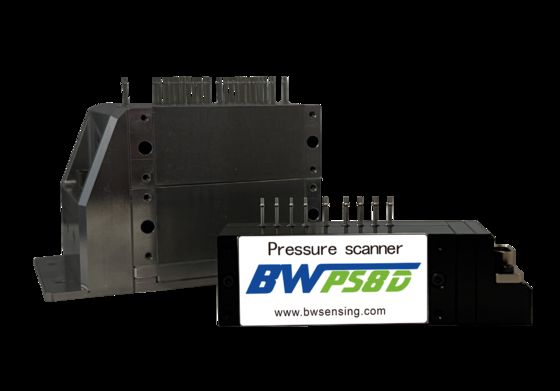

BW-PS8D Series 64 channel high precision Pressure Scanning Valve 0

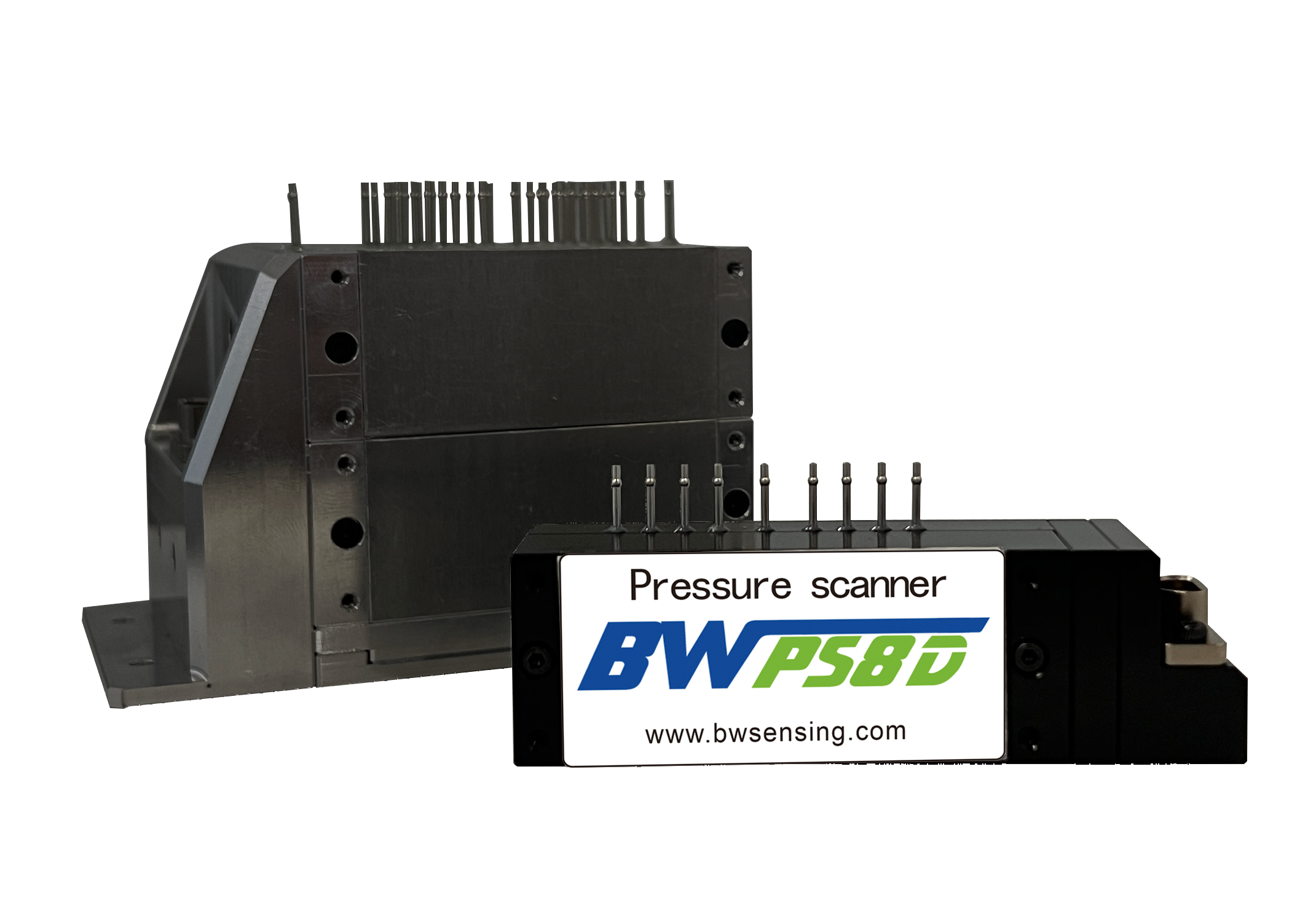

BW-PS8D Series 64 channel high precision Pressure Scanning Valve 1
